Pneumatic Actuator Ceramic Twin Disc Gate Valve

Pneumatic Actuator Ceramic Twin Disc Gate Valve

Body Material: ASTM A216 WCB, A351 CF8.
Size Range: DN50-DN600
Pressure Range: PN16 Max.
Ceramic material: Aluminum Oxide, Zirconium Oxide etc.

VerSpec is one unique factory who has complete ceramic production line from powder raw material to finished ceramic parts. Our quality concept is good quality ceramic valves from good quality ceramic raw materials.

VerSpec ceramic twin disc gate valve has ceramic liner inside of body, that’s why this valve used in good performance for dry ash conveying system and for hopper pump. And this type valve also very good used for high abrasion industries, such as mining, papermaking, chemicals etc. the max temperature of this valve is 200℃.

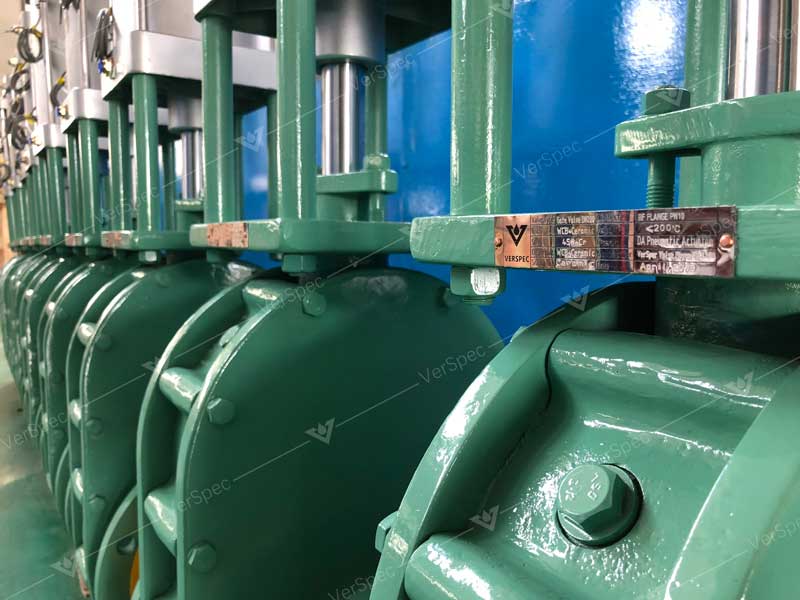

This valve combined with one middle body and two side bodies. to keep valve in long life, flow bore lined with ceramic material, seat and disc also made in ceramic material. Valve on-off in very short time operated by double acting pneumatic actuator.
